| Attenuator Applications |
Attenuating
Patchcord |
Fixed In-Line
Attenuator |
Fixed In-Line
Attenuator |
Terminator |
| Optical Properties |
ATN-FBL |

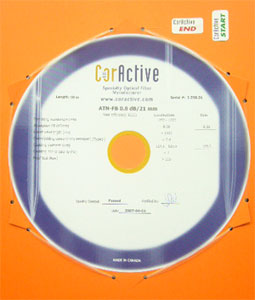

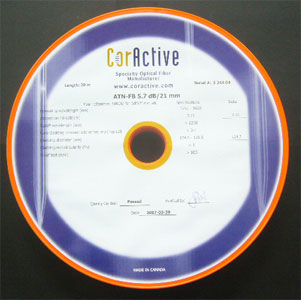

ATN-FB |
ATN-FBX |
ATN-TA |

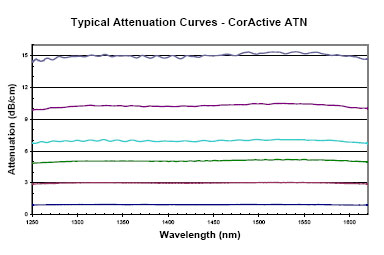

| Attenuation Range Available (dB/cm) |
0.005 to 0.4 |
0.4 to 15 |
> 15 |
>15
Large Core |
Attenuation Tolerance on nominal value
from 1250 to 1620nm (%) |
± 7.5 |
± 7.5 |
± 7.5 |
NA |
| Effective Numerical Aperture |
0.125 ± 0.015 |
| Theoretical Cut-off Wavelength (nm) |
1200 |
| Physical & Geometric Properties |
|
| Cladding Diameter (μm) |
125±0.5 |
| Dual Acrylate Coating Diameter (μm) |
245±10 |
| Core/cladding Concentricity Error (μm) |
0.4 (typical) |
| Coating/cladding Concentricity Error (μm) |
< 8 |
| Cladding Non-circularity (%) |
< 1 |
Standard Proof Test (kpsi)
(up to 200 kpsi available) |
100 |
