3d scope
) |
| |
| 3D scope |
| |
The low-cost volume production interferometer for ferrule end-face
symmetry measurements.

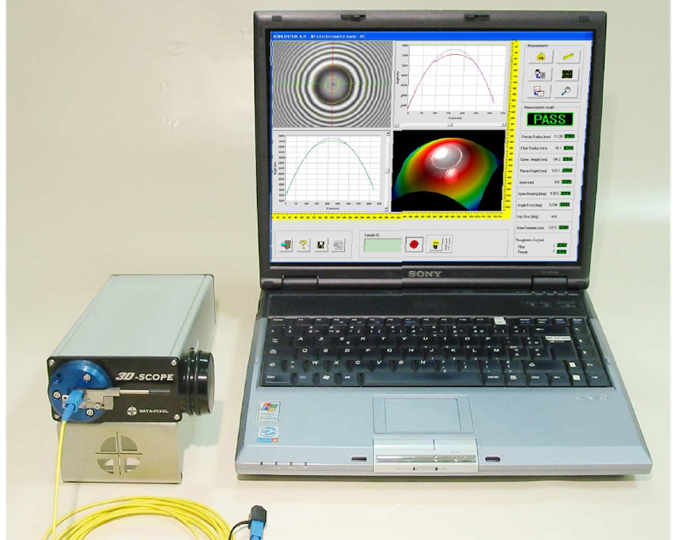

Data-Pixel is pleased to introduce the 3D-Scope interferometer. 3D-Scope is the new
interferometer really designed for the use in the production environment. It was
designed with speed, precision, simplicity, robustness and cost in mind. |
 |
| |
| Software DAISI interferometry |
3DScope uses the industry-proven DAISI software. Non-compressed. real time and
high quality images are transferee! from the hardware to the software via a USB2.0
high speed link in addition to the automation and control commands.
3DScope is portable and can be interfaced to laptop or desktop computers through
one single USB link only (including power).

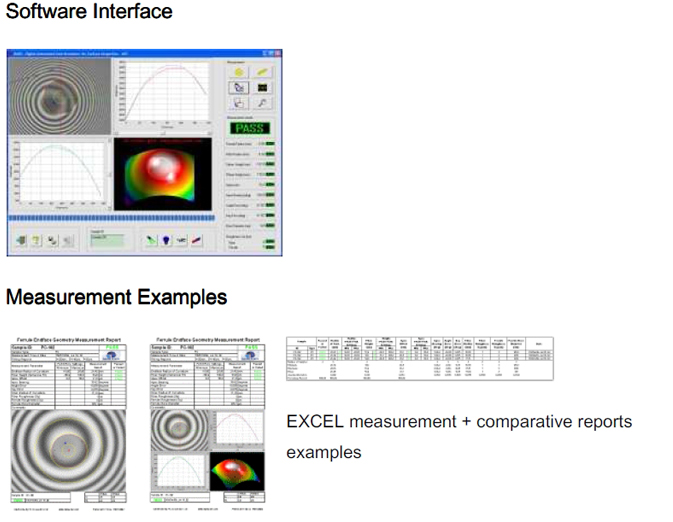

All calibration steps are automated and embedded into a user-friendly software
interface in order to yield error-free and reliable measurements. |
| |
| Key Features |
Single unit for measurement of single-fiber. PC and APC ferrules, connectors and
bare fibers
• Non-contact measurement
• True phase-shifting interferometer
• No exterior moving parts or adjustment screw -> No apex decalibration
• Completely vibration insensitive. Measure while holding system in hand
• Connector key adaptors for most connector types
• Fast and automated measurement of radius, apex offset, fiber height + more
• Accurate and repeatable measurements
• Interfaceable to laptop computers, only one USB2.0 link required, including power
• Low power requirements; can be used on battery-operated laptop in the field
• Compliance with Industry Standards for Interferometer Measurements
• Measure angle of cleaving of bare fibers with great precision
• High resolution 2D & 3D surface profiles
• Measurement Report and History Report in Excel
• Measure Fiber and Ferrule Roughness (Sq parameter)
• Low cost! |
 |
| |
| Parameter |
*Repeatability/Reproducibility |
Range |
| Radius (mm) |
±0.2% / ±0.4% |
3 to flat |
| Apex Offset (Mm) |
±0.7/±1.5 |
0 to 500 |
| Fibre Height (nm) |
±1.5/±2 |
±160 |
| Fiber Cleave Angle (°) |
±0.03* |
O to 12° |
| Measurement Speed (sec.) |
|
2 |
| Magnification |
|
x200 |
| Wavelength (nm) |
|
633 |
| Power requirements |
|
Provided by USB port |
| Dimensions (cm3) |
|
25x7x13 |
| Weight (Kg) |
|
1.9 |
|
|
|
| |
|
