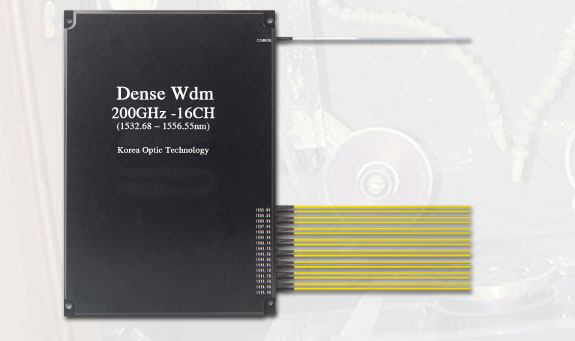

dense wdm module

)

　Characteristics

　* 100/200GHz Channel Spacing
* Low Insertion Loss
* High Isolation
* Compact Size
* Excellent Stability and Reliability
* Excellent Wavelength Accuracy

　Applications

　* Dense WDM Systems
* CATV Systems
* Optical Add/Drop Multiplexing

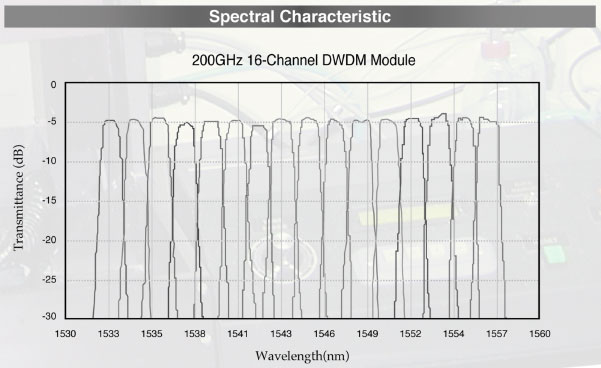

　Specifications

NO	Parameters	Spec.	Remarks
1	Operating Center Wavelength (nm)	ITU GRID
2	CWL Tolerance (nm)	±0.1
3	Channel Spacing (nm)	1.6
4	Passband Width (nm)	Min. 0.8	at -0.5dBm
5	Insertion Loss (dB)	Max. 5.0
6	Passband Ripple (dB)	Max. 0.4
7	Channel Uniformity (dB)	Max. 1.0
8	Isolation (dB)	Min. 25	Adjacent Channels
9	Isolation (dB)	Min. 40	Non-adjacent Channels
10	Directivity (dB)	Min. 55
11	Return Loss (dB)	Min. 50
12	PDL (dB)	Max. 0.15
13	PMD (ps)	Max. 0.1
14	Thermal Stability (dB/℃)	Max. 0.005
15	Thermal Wavelength Drift (nm/℃)	Max. 0.002
16	Power Handling Capacity (mW)	Max. 300
17	Operating Temperature (℃)	-5~65
18	Storage Temperature (℃)	-40~85
19	Package Dimension (mm)	140x96x20	(L x W x D)
