| Breakout Cables(Standed-type) |
| |
| Design |

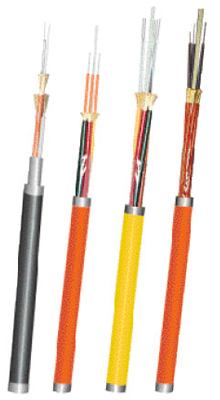

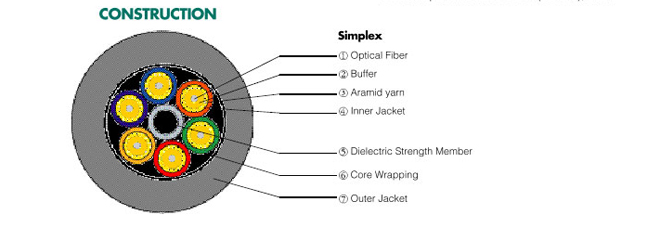

The Breakout Cables shall have fiber count up to 6.
The buffered fiber is surrounded by a aramid yarn
strength member. The continuous FR-PVC jacket has an
outer diameter 1.6¤·mm, 2.0mm, 2.4mm, or
3.0mm.(Simplex Cable).The each optical fibers are
buffered by a protective FR-PVC. The simplexes shall be
stranded with two or several siplexs with central strength
member.
The simplexes shall be helically stranded in cable core
for survival in difficult pulls and superior mechanical
protection for the optical fibers.
Color-coded (or jacket numbering print) simplexes are
easy to identify for improved cable management in
routing and termination.
Our tight-buffered multi-fiber design with aramid yarn
strength member allows for flexibility and reliability for
use in trunking, LAN and distribution application. Other
designs are also available on request to meet specified
requirments and conditions.
|
| Applications |
The Breakout Cables is a flexible, flame-retardant, non-
metalic cable recommended for use in
telecommunication station between the optical line
system and the fiber frame distribution (OFD). It is also
suitable for data networks (LAN).
• Intrabuilding Backbone
• Trunking, FDDI, LAN distribution
• FRP or Aramid yarn Central Strength Member
reinforce Cable
• Indoor / Outdoor Cable
|
| Features |
• Fiber count up to 6
• Available in single mode and multi-mode fibers
• Highly flexible and light weight for easy handling
• Compact design to save duct or conduit space
• Flame-retardant PVC, Hytrel, Nylon and LSZH buffer
• Flame-retardant PVC, FR-PE and LSZH jacket
• FRP or aramid yarn strength member
reinforcement
• Easy stripping for quick splicing
• UL-listed riser-rated OFNR (UL-1666), Cable
• UL-listed plenums-rated OFNP (UL-910), Cable
|
|
 |
| |
| Cable Technical Data |
Part Number
(Standard) |
Simplex
Diameter
(um) |
Jacket
Diameter
(mm) |
Cable
weight
(kg/km) |
Tensile Load
(N) |
Minimum Bending
Radius
(mm) |
Temperature
(¡É) |
Supplied
Length
(m) |
| Installing |
Operating |
Installing |
Operating |
Installing |
Operating |
| BO-20-SR/PP02-YL |
2.0 |
6.4 |
37.0 |
900 |
300 |
100 |
64 |
-15~+15 |
-20~+70 |
1,000 |
| BO-20-SR/PP03-YL |
2.0 |
6.8 |
45.0 |
900 |
300 |
100 |
68 |
-15~+15 |
-20~+70 |
1,000 |
| BO-20-SR/PP04-YL |
2.0 |
7.4 |
53.0 |
1,600 |
400 |
110 |
74 |
-15~+15 |
-20~+70 |
1,000 |
| BO-20-SR/PP05-YL |
2.0 |
7.8 |
57.5 |
1,600 |
400 |
120 |
78 |
-15~+15 |
-20~+70 |
1,000 |
| BO-20-SR/PP06-YL |
2.0 |
8.4 |
65.0 |
2,400 |
600 |
130 |
84 |
-15~+15 |
-20~+70 |
1,000 |
| BO-20-SR/PE02-YL |
2.0 |
7.4 |
37.5 |
1,500 |
500 |
110 |
74 |
-15~+15 |
-20~+70 |
1,000 |
| BO-20-SR/PE03-YL |
2.0 |
7.8 |
45.5 |
1,500 |
500 |
120 |
78 |
-15~+15 |
-20~+70 |
1,000 |
| BO-20-SR/PE04-YL |
2.0 |
8.4 |
54.0 |
2,500 |
800 |
130 |
84 |
-15~+15 |
-20~+70 |
1,000 |
| BO-20-SR/PE05-YL |
2.0 |
8.8 |
58.5 |
2,500 |
800 |
130 |
88 |
-15~+15 |
-20~+70 |
1,000 |
| BO-20-SR/PE06-YL |
2.0 |
9.4 |
65.5 |
3,500 |
1,200 |
140 |
94 |
-15~+15 |
-20~+70 |
1,000 |
|
| |
| Ordering Information |
 Select Fiber Type
20 : 2.0MM
 Select Buffer Materials
H : TPEE (Thermoplastics Polyester Elastomer £» HytrelR)
L : LSZH (Low Smoke Zero ("¤·") Halogen)
R : OFNR (Flame-retardant Polyvinyl Chioride)
P : OFNP (Flame-retardant Polyvinyl Chioride)
 Select Outer Jacket Materials
P : FR-PVC(Flame-retardant Polyvinyl Chioride)
E : FR-PE
(Frame-retardant Polyethylene)
 Select Outer Jacket Materials
P:FR-PVC(Flame-retardant Polyvinyl Chioride) |
 Select Fiber Type
S : 9/125 SMF (Single mode fiber)
M£º50/125 MMF (Multi-mode fiber)
H£º62.5/125 MMF (Multi-mode fiber)
 Select Flame Retardancy Grade
V : PVDF(Thermoplastics Polyvinylidene Fluoride)
E : FR-PE
(Frame-retardant Polyethylene)
L : LSZH (Low Smoke Zero ("¤·") Halogen)
P : FR-PVC(Flame-retardant Polyvinyl Chioride)
 Select Jacket Color Abbreviation
02 : Fiber Count |
|
♣Printing of outer jacket ( OPTIONAL according to CUSTOMER) |
| |
| Cabled Attenuation |
| Fiber Type |
SMF (9/125)
(Single Mode Fiber)
13.10nm / 1550nm |
MMF(50/125)
(Multi-Mode Fiber)
850nm / 1300nm |
MMF(62.5/125)
(Multi-Mode Fiber)
850nm / 1300nm |
Maximum Attenuation
(dB/km) |
0.40 / 0.25 |
3.5 / 1.5 |
3.7 / 1.5 |
Typical Attenuation
(dB/km) |
0.35 / 0.20 |
2.5 / 0.6 |
3.0 / 1.0 |
|
| |
| |
|
|
|
