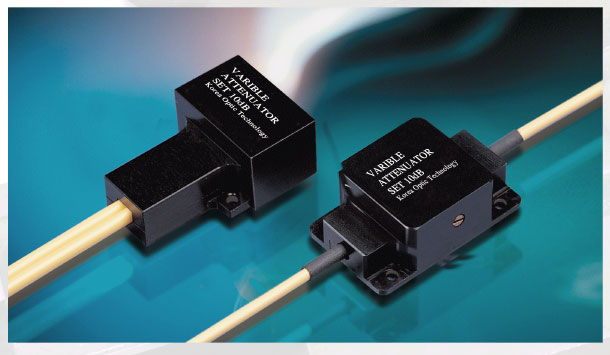

fiber attenuators

)

　Features

　* Low PDL and WDL
　* Low Back Reflection
　* Wide Dynamic Range
　* Board Mounting/Compact Size
　* Low Residual Loss
　* Low Ripple
　* High Linearity

　Applications

　* Optical Fiber Communications
　* High Speed Transmission Systems
　* Instrumentation
　* System Testing
　* Receiver Padding
　* Optical Power Control

　 Specifications

Parameters		Configuration
Parameters		MVA-W	MVA-D	MVA-C
Operating Wavelength (nm)	-	1200~1600	1520~1625	1520~1565
Uniformity (dB)	Max.	1.0	0.2	0.2
Dynamic Range (dB)	Min.	40 / 60
Residual Loss (dB)	Max.	1.5
Back Reflection (dB)	Min.	50
Resolution (dB)	Max.	0.05
Linearity (dB)	Max.	±0.7
PDL (dB)	Max.	0.2
PMD (ps)	Max.	0.1
Optical Power (mW)	Max.	200

Dimensions (L x W x H mm)	-	In Line	37 x 23 x 13.5
Dimensions (L x W x H mm)	-	Mirror	38 x 25 x 14.5
Operating Temperature Range(℃)	-	-5 ~ +70
Storage Temperature (℃)	-	-40 ~ +85
