Attenuation fiber

Appearance

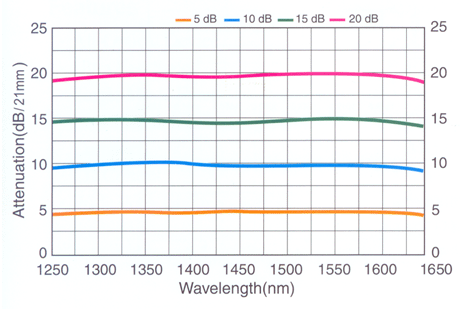

Specialty optical fibers are fabricated for WDM (Wavelength Division Multiplexing) applications with flat attenuation properties. The attenuation fibers have the potential to offer high reliability and stable input optical power endurance. Attenuation fibers are designed to be used for plug and in-line types attenuators covering from 1250nm to 1650nm with 1~30dB/21mm.

Features

- Ideal for WDM communication applications
- Durable for high-input power
- Precise control of attenuation range
- High attenuation for connector & In-line type attenuators
- High reliability.

Applications

- Dynamic power leveling in optical Add/Drop Multiplexing
- EDFA
- Dynamic power balancing in WDM/DWDM systems
- CATV systems
- Optical network equipments
- Bi-directional systems.

Applications

Parameters	Conditions
Operating Wavelength	1250 ~ 1650㎚
Attenuation	1 ~ 30㏈/15.4mm, 21mm, 22.4mm
Core Diameter	8 ~ 10㎛
Cladding Diameter	125 ± 0.5㎛
Coating Diameter	250 ± 15㎛
Cutoff Wavelength	1200 ± 20㎚
Operating Temperature Range	-40℃ ~ 75℃
Storage Temperature Range	-40℃ ~ 85℃
