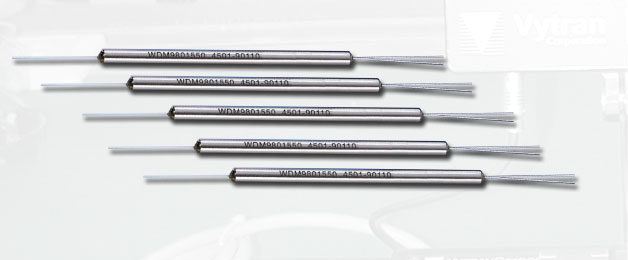

wavelength division multiplers

)

　Characteristics

　* Low Insertion Loss
* Low Back Reflection
* Low Excess Loss
* High Directivity
* Compact Size

　Applications

　* LAN, CATV Systems
* Subscriber's Network Equipments
* Optical Fiber Communications
* EDFA
* Bi-directional Systems

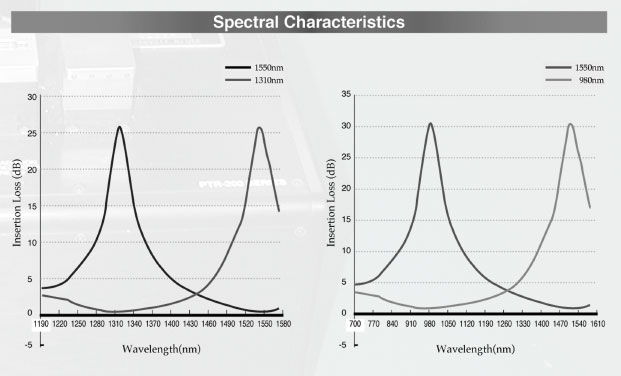

　Specifications

Specifications

Parameters		Configuration
		980/1550		1310/1550		1480/1550
Grade		P	A	P	A	P	A
Insertion Loss (dB)	Max.	0.4	0.6	0.4	0.6	0.5	0.7
Isolation (dB)	Min.	20	18	17	16	12	10
Bandwidth (nm)	-	±10		±15		±7
PDL (dB)	Max.	0.15
Directivity (dB)	Min.	55
Fiber	-	HI980, HI1060 Lucent 980		SMF-28		SMF-28

Operating Temperature 　Range(℃)		-40~ +70
Storage Temperature 　Range(℃)		-40~ +85
Package Dimension (mm)		S: ￠3.0 x 54L L: ￠4.0 x 70L C: ￠85L x 17W x 7H
