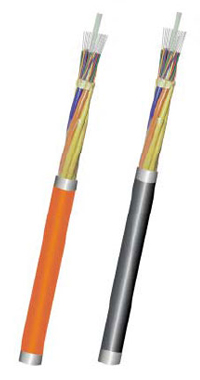

| Multi-Unit Cables |
| |

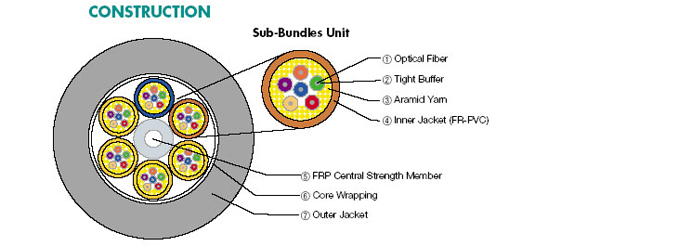

| Design |
The Multi-Unit Cables shall have fiber count tip to 36. The
multi-unit core shall be stranded with several sub-units
(Birvjles-Type 4C, 5C and 6C). The each optical fibers are
buffered by a protective FR-PVC. The cable core is a
bur>ch (Bundles-Type) of the buffered fibers and
surrounded with a layer of reinforcing aramid yarn.
The cokxed thermoplastic inner jacket(SU>iriO is
extruded over the aramid yarn.
The sub-units shall be helically stranded in cable core for
survival in difficult pulls and superior mechanical pioJection
for the optical fibers.
Color-coded {or jacket numbering print) sub-units are easy
to identify for improved cable management in routing and
termination.
Our tight-buffered multi-fiber design with aramid yarn
strength member allows for flexibility and reliability for use
in trunking. LAN and distribution application. Other designs
are also available on request to meet specified requirments
and conditions.
|
| Applications |
The Multi-Unit Cables is a flexible, flame-retardant, non-
metalic cable recommended for use in telecommunication
station between the optical line system and the fiber frame
distribution (OFD). It is also suitable for data networks
(LAN).
• Intrabuilding Backbone
• Trunking, FDDI, LAN distribution
• FRP Central Strength Member reinforce Cable
• Indoor/ Outdoor Cable
|
| Features |
• Fiber count up to 36
• Available in single mode and multi-mode fibers
• Highly flexible and light weight for easy handling
• Compact design to save duct or conduit space
• Flame-retardant PVC. Hytrel, Nyton and LSZH buffer
• Rame-retardant PVC. FR-PE and LSZH jacket
• FRP strength member reinforcement
• Easy stripping for quick splicing
• UL-listed riser-rated OFNR (UL-1666). Cable
• UL-listed plenums-rated OFNP (UL-910), Cable
|
|
 |
| |
| Cable Technical Data |
Part Number
(Standard) |
Sub-bundies
Unit
Lay-Out |
Jacket
Diameter
(mm) |
Cable
weight
(kg/km) |
Tensile Load
(N) |
Minimum Bending
Radius
(mm) |
Temperature
(¡É) |
Supplied
Length
(m) |
| Installing |
Operating |
Installing |
Operating |
Installing |
Operating |
| MU-SP/PP 16-YL |
4 Unit (4C) |
10.2 |
80 |
1,400 |
320 |
150 |
100 |
-15~+15 |
-20~+70 |
1,000 |
| MU-SP/PP 18-YL |
3 Unit (6C) |
10.7 |
90 |
1,400 |
320 |
150 |
100 |
-15~+15 |
-20~+70 |
1,000 |
| MU-SP/PP 20-YL |
4 Unit (5C) |
11.9 |
10 |
1,600 |
360 |
180 |
120 |
-15~+15 |
-20~+70 |
1,000 |
| MU-SP/PP 24-YL |
4 Unit (6C) |
12.2 |
127 |
2,000 |
450 |
180 |
120 |
-15~+15 |
-20~+70 |
1,000 |
| MU-SP/PP 30-YL |
5 Unit (6C) |
13.4 |
180 |
3,000 |
680 |
200 |
130 |
-15~+15 |
-20~+70 |
1,000 |
| MU-SP/PP 36-YL |
6 Unit (6C) |
14.6 |
200 |
4,000 |
900 |
210 |
140 |
-15~+15 |
-20~+70 |
1,000 |
| MU-SP/PE 16-BK |
4 Unit (4C) |
11.2 |
120 |
1,400 |
320 |
180 |
120 |
-15~+15 |
-20~+70 |
1,000 |
| MU-SP/PE 18-BK |
3 Unit (6C) |
11.7 |
135 |
1,400 |
320 |
180 |
120 |
-15~+15 |
-20~+70 |
1,000 |
| MU-SP/PE 20-BK |
4 Unit (5C) |
12.9 |
150 |
1,600 |
360 |
200 |
130 |
-15~+15 |
-20~+70 |
1,000 |
| MU-SP/PE 24-BK |
4 Unit (6C) |
13.2 |
190 |
2,000 |
450 |
200 |
130 |
-15~+15 |
-20~+70 |
1,000 |
| MU-SP/PE 30-BK |
5 Unit (6C) |
14.4 |
270 |
3,000 |
680 |
230 |
150 |
-15~+15 |
-20~+70 |
1,000 |
| MU-SP/PE 36-BK |
6 Unit (6C) |
15.6 |
300 |
4,000 |
900 |
230 |
150 |
-15~+15 |
-20~+70 |
1,000 |
|
| |
| Ordering Information |
 Select Fiber Type
S : 9/125 SMF (Single mode fiber)
M£º50/125 MMF (Multi-mode fiber)
H£º62.5/125 MMF (Multi-mode fiber)
 Select Inner Jacket Materials
H : TPEE (Thermoplastics Polyester Elastomer : HytrelR)
L : LSZH (Low Smoke Zero ("¤·") Halogen)
P : FR-PVC(Flame-retardant Polyvinyl Chioride)
 Select Cable Outer Diameter
02 : Fiber Count |
 Select Buffer Materials
N: PA-12 (Polyamid ; NylonR)
H: TPEE (Thermoplastics Polyester Elastomer £» HytrelR)
L: LSZH (Low Smoke Zero ("¤·") Halogen)
P:FR-PVC(Flame-retardant Polyvinyl Chioride)
 Select Flame Retardancy Grade
L : LSZH Type(Low Smoke Zero ("¤·") Halogen)
P : OFNP Type (Frame-retardant Polyvinyl Chloride)
---Indoor Appliction (Thickness. 1.0mm)
E : FR-PE
(Frame-retardant Polyethylene)
---Outdoor Application (Thickness. 1.5mm)
 Select Jacket Color Abbreviation
EX)BK : Black |
|
♣Printing of outer jacket ( OPTIONAL according to CUSTOMER) |
| |
| Cabled Attenuation |
| Fiber Type |
SMF (9/125)
(Single Mode Fiber)
13.10nm / 1550nm |
MMF(50/125)
(Multi-Mode Fiber)
850nm / 1300nm |
MMF(62.5/125)
(Multi-Mode Fiber)
850nm / 1300nm |
Maximum Attenuation
(dB/km) |
0.40 / 0.25 |
3.5 / 1.5 |
3.7 / 1.5 |
Typical Attenuation
(dB/km) |
0.35 / 0.20 |
2.5 / 0.6 |
3.0 / 1.0 |
|
| |
|
|
|
