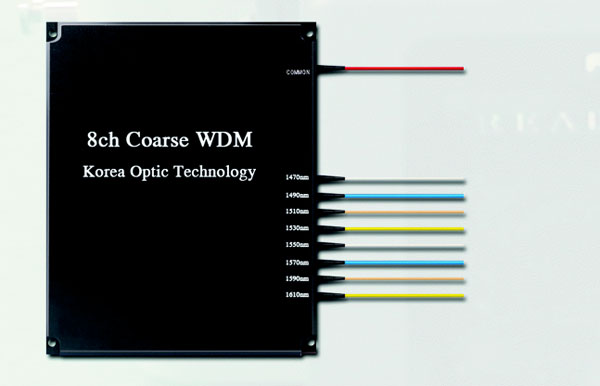

coarse wdm module

)

　Characteristics

　* Wide Passband
* Low Insertion Loss
* High Isolation
* Low PDL & PMD
* Compact Size
* Excellent Stability and Reliability
* Wide Operating Wavelength & Temperature Range

　Applications

　* WDM Systems for Metro/ Access Network
* Repeaters for IMT-2000
* Line Monitoring
* Amplifier Systems
* Optical Add/Drop Multiplexing

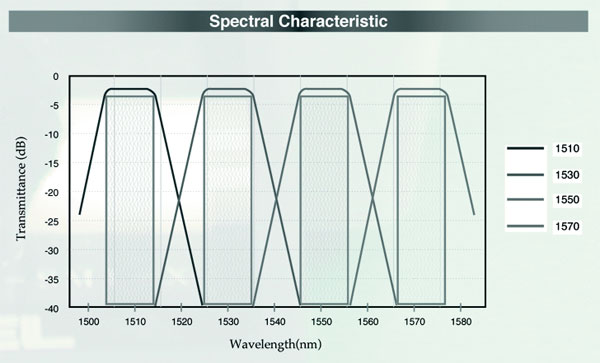

Specifications

NO	Parameters	Spec.	Remarks
1	Operating Center Wavelength (nm)	1470~1610
2	CWL Tolerance (nm)	±1
3	Channel Spacing (nm)	20
4	Passband Width (nm)	Min. 15.4	at -0.5dBm
5	Insertion Loss (dB)	Max. 3.0
6	Passband Ripple (dB)	Max. 0.4
7	Channel Uniformity (dB)	Max. 1.0
8	Isolation (dB)	Min. 25	Adjacent Channels
9	Isolation (dB)	Min. 40	Non-adjacent Channels
10	Directivity (dB)	Min. 55
11	Return Loss (dB)	Min. 50
12	PDL (dB)	Max. 0.1
13	PMD (ps)	Max. 0.1
14	Thermal Stability (dB/℃)	Max. 0.005
15	Thermal Wavelength Drift (nm/℃)	Max. 0.003
16	Power Handling Capacity (mW)	Max. 300
17	Operating Temperature (℃)	-5~65
18	Storage Temperature (℃)	-40~85
19	Package Dimension (mm)	100x80x12	(L x W x D)
