buffered fibers

)

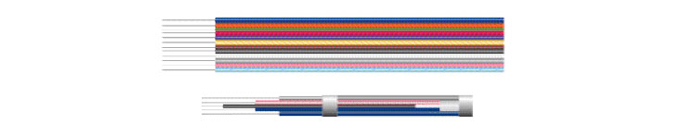

Buffered Fibers

Design

The tight buffer designs add thermoplastic to the coating directly on the fiber with diameter up to 900um. Color-coded Buffers are easy to identify for improved cable management in routing and termination.

Features

• 12 colors coded
• Available in single mode and multi-mode fibers
• Highly flexible and light weight for easy handling
• Easy stripping for quick splicing
• Various coating material

Othering Information

Select Fiber Type
S:9/125 SMF (Single mode fiber)
M：50/125 MMF (Multi-mode fiber)
H：62.5/125 MMF (Multi-mode fiber)

Select Buffer Materials
N: PA-12 (Polyamid ; Nytonn)
H: TPEE (Thermoplastics Polyester Elastomer ； HytrelR)
L: LSZH {Low Smoke Zero ("ㅇ") Halogen)
R：OFNR (Flame-retardant Polyvinyl Chloride)
P:OFNP (Flame-retardant Polyvinyl Chioride)

Select Inner Jacket Materials
600：600um Buffer Diameter
650:650um Buffer Diameter
900:900um Buffer Diameter

Select Jacket Color Abbreviation
EX)BL: Blue

-Supplied Length : 2000m/Drum
4000m/Box(2 Drum)

Cabled Attenuation

Fiber Types	SMF (9/125) (Single Mode Fiber 1310mm/ 1550nm)	MMF(50/125)(Multi-Mode Fiber 850nm / 1300nm)	MMF(62.5/125)(Multi-Mode Fiber 850nm / 1300nm)
Maximum Attenuation (dB/km)	0.45/0.30	3.8/2.0	4.2/2.0
Typical Attenuation (Db/km)	0.35/0.20	2.5/0.6	3.0/1.0
