| Multimode Optical Fiber |
|
Multimode fibers are graded index multimode optical fibers
which have core diameter of 50 and 62,5m,
These fibers have the highest bandwidth and lowest attenuation, which
is optimized for 850nm and 1300nm operation wavelength region.
For excellent optical and mechanical performances all materials are
specifically engineered to meet all industry specifications.
|
| FEATURESS BENEFITS |
- Optimized at 850nm and/or 1310nm LED operation.
- Uniform geometrical characteristics for excellent splicing.

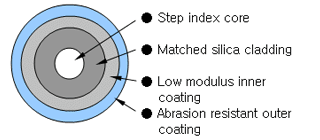

- Dual coated construction for minimum bending-induced loss
- Compatible with full line of premises distribution products.
|
| FEATURESS BENEFITS |
- Local area networks.
- Computer $ Data networks.
- Voices / video services,
- Distribution systems and Trunking systems
- Specially Gigabit Ethernet (IEEE 802.3z)
|
|
| |
| Characteristics |
| Items |
Specifications |
| ISO/IEC 11801 OM1 |
ISO/IEC 11801 OM2 |
ISO/IEC 11801 OM3 |
| Attenuation |
@850nm |
≤ 2.90 dB/km |
≤ 2.30 dB/km |
≤ 2.30 dB/km |
| @1300nm |
≤ 0.60 dB/km |
≤ 0.60 dB/km |
≤ 0.60 dB/km |
| Bandwidth |
@850nm |
≥ 200 MHz. km |
≤ 0.60 dB/km |
≥ 1500 MHz. km |
| @1300nm |
≥ 500 MHz. km |
≥ 600 MHz.km |
≥ 500 MHz.km |
| Laser Source Bandwidth |
- |
- |
≥ 2000 MHz.km |
| 10 Gbit/s Ethernet Distance |
- |
- |
≤ 300m |
| Numerical Apperature |
0.275 ±0.015 |
0.200 ±0.015 |
0.200 ±0.015 |
| Zero Dispersion Wavelength |
≤ 0.10 ps/nm-.km |
1295 ~ 1320nm |
1295 ~ 1320nm |
| Zero Dispersion Slope |
≤ 0.10 ps/nm-.km |
≤0.10 ps/nm-.km |
≤0.10 ps/nm~.km |
| Core Diameter |
62.5 ± 2.5 um |
50 ± 2.5 um |
50 ± 2.5 um |
| Clad Diameter |
125 ± 1 um |
125 ± 1 um |
125 ± 1 um |
| Coating Diameter |
245 ± 10 um |
245 ± 10 um |
245 ± 10 um |
| Temperature Dependence * |
≤.1 dB/km |
≤. 0.1 dB/km |
≤. 0.1 dB/km |
| Temp. & Humidity Cycling ** |
( @850nm & @1300nm ) |
( @850nm & @1300nm ) |
( @850nm & @1300nm ) |
|
| |
| Mechanical Characteristics |
 |
| Items |
Specifications |
| Proof Test Level |
≥ 100 kpsi (0.7GN/m-) |
| Coating Strip Force |
1.3-8.9N (Nom. 3N) |
| Tensile Strength |
≥ 550 kpsi (3.8GN/m-) |
Macro Bending Loss
(850/1300nm, 75mm, 10Oturns) |
≤ 0.5 dB |
|
|
|
|
|
