| SMF |
| |
| Low Water Peak Single Mode Optical Fiber [LWPF] |

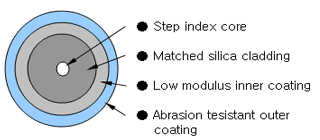

LWPF is designed to provide improved performance across
the full wavelength region form 1265 to 1625nm.
LWPF fully meets ITU-T G.652 and is available for use in
loose tube cable, ribbon and other cable designs.
It use ultra-pure materials based on silica, so this optical fiber
has excellent optical and mechanical performance.
|
| FEATURESS BENEFITS |
- Low 1383nm Loss for full utilization from 1265 to 1625nm
- Low transmission loss and great repeater spacing.
- Outstanding geometrical properties for low splice loss.
- Minimum bending loss al operation wavelength region.
- Mechanically strippable coaling for easy field application.
- Compatible with any commercial optical devices.
|
| FEATURESS BENEFITS |
- Local area network systems
- Long haul telecommunication
- Data communication
- Cable television system
- Closed circuit television system
- Process control systems |
|
| Optical Characteristics |
Geometric Characteristics |
| Items |
Specifications |
| Attenuation |
@1310nm |
≤ 0.34 dB/km |
| @1310nm |
≤ 0.31 dB/km |
| @1310nm |
≤ 0.21 dB/km |
| @1310nm |
≤ 0.22 dB/km |
| Dispersion |
@1310nm |
≤ 3.2 ps/nm.km |
| @1310nm |
≤ 18 ps/nm.km |
| PMD |
@1310nm |
≤ 0.20 ps/vkm |
| @1310nm |
≤ 0.10 ps/vkm |
| Zero Dispersion Wavelength |
1300~1320nm |
| Zero Dispersion Slove |
≤ 0.092 ps/nm.km |
| Cutoff Wavelength |
Fiber |
1150~1330nm |
| Cable |
≤ 1260nm |
* After hydrogen aging test based on IEC 60793-2-50 |
| Items |
Specifications |
| Mode Field Diameter |
9.2W ± 0.4§ @1310nm |
| Cladding Clameter |
125 ± 0.9§ |
| Cladding Non-Circularity |
≤ 0.9% |
| Concentricity Error |
≤ 0.7§ |
| Coating Diameter |
245 ± 10§ |
|
| |
| Mechanical Characteristics |
| Items |
Specifications |
| Proof Test Level |
≥ 100kpsi (0.7GN/§³) |
| Coating Strip Force |
1.3~8.9N (Nom. 3N) |
| Tensile Strength |
≥ 550 kpsi(3.8N/§³) |
| Dynamic & Static Fatigue |
≥ 20 |
|
|
| |
| Environmental Characteristics |
| Test Method |
Test Condition |
Induced Loss @1320 |
Induced Loss @1550nm |
| Temperature Dependence |
-60¡É ~ +85¡É |
≤ 0.05 dB/km |
≤ 0.05 dB/km |
| Temperature Humidity Cycling |
-10¡É ~ +85¡É / RH 95% |
≤ 0.05 dB/km |
≤ 0.05 dB/km |
|
| |
| Typical Performance Characteristics |
 |
| Items |
Specifications |
Effective
Group Index |
@1310nm |
1.467 |
| @1550nm |
1.468 |
| Refractive Index Difference |
0.34% |
| Zero Dispersion Wavelength |
1313nm |
| Zero Dispersion Slope |
0.086 ps/n§©.km |
| Dispersion at 1550nm |
16.5 ps/nm.km |
|
|
