Products < Cable < Single-Unit Cables(Bundles-type) (single-unit cables) |
|
| |

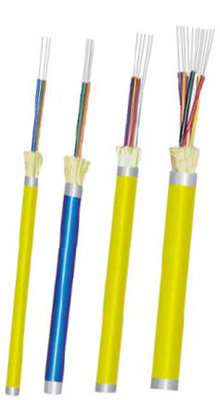

| Single-Unit Cables(Bundles-type) |
| |

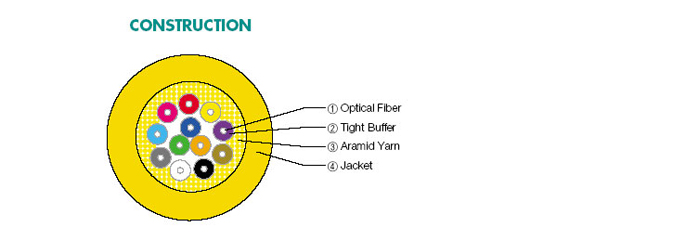

| Design |
The Single-Unit Cables shall have fiber count up to 12.
The each optical fiber from 2 to 12cores is buffered by
a protective thermoplastic. The cable core is a bunch
(Bundles-Type) of the buffered fibers and surrounded
with one layer of reinforcing aramid yarn.
The colored thermoplastic jacket is extruded over the
aramid yarn.
The tight buffer designs add thermoplastic to the
coating directly on the fiber with diameter up to 900um.
Tight coating designs use logitudinal aramid yarn as
the strength member. The colored jacket shall be
extruded over the aramid yarn.
Our tight-buffered multi-fiber design with aramid yarn
strength member allows for flexibility and reliability for
use in trunking, LAN and distribution application. Other
designs are also available on request to meet specified
requirments and conditions.
|
| Applications |
Single-Unit (Bundles-Type) Cables is a flexible, flame-
retardant. non-metalic cable recommended for use in
telecommunication station between the optical line
system and the fiber frame distribution (OFD). It is also
suitable for data networks (LAN).
• Intrabuilding Backbone
• Trunking, FDDI, LAN distribution
|
| Features |
• Fiber count up to 12
• Available in single mode and multi-mode fibers
• Highly flexible and light weight for easy handling
• Compact design to save duct or conduit space
• Flame-retardant PVC. Hytrel, Nylon and LSZH buffer
• Flame-retardant PVC, PVDF. FR-PE and LSZH
outer jacket
• Aramid yarn strength member reinforcement
• Easy stripping for quick splicing
• UL-listed riser-rated OFNR (UL-1666). Cable
• UL-listed plenums-rated OFNP (UL-910), Cable
|
|
 |
| |
| Cable Technical Data |
Part Number
(Standard) |
Buffer
Diameter
(um) |
Jacket
Diameter
(mm) |
Cable
weight
(kg/km) |
Tensile Load
(N) |
Minimum Bending
Radius
(mm) |
Temperature
(¡É) |
Supplied
Length
(m) |
| Installing |
Operating |
Installing |
Operating |
Installing |
Operating |
| SU-SP/PR 02-YL |
900 |
4.5 |
18.5 |
760 |
340 |
68 |
45 |
-15~+15 |
-20~+70 |
1,000 |
| SU-SP/PR 04-YL |
900 |
5.0 |
23.0 |
920 |
420 |
72 |
48 |
-15~+15 |
-20~+70 |
1,000 |
| SU-SP/PR 06-YL |
900 |
5.2 |
24.0 |
1340 |
620 |
80 |
53 |
-15~+15 |
-20~+70 |
1,000 |
| SU-SP/PR 08-YL |
900 |
6.2 |
32.0 |
1340 |
620 |
90 |
60 |
-15~+15 |
-20~+70 |
1,000 |
| SU-SP/PR 10-YL |
900 |
6.5 |
36.5 |
1340 |
620 |
98 |
65 |
-15~+15 |
-20~+70 |
1,000 |
| SU-SP/PR 12-YL |
900 |
7.2 |
40.5 |
1540 |
700 |
98 |
65 |
-15~+15 |
-20~+70 |
1,000 |
|
| |
| Ordering Information |
 Select Fiber Type
S : 9/125 SMF (Single mode fiber)
M£º50/125 MMF (Multi-mode fiber)
H£º62.5/125 MMF (Multi-mode fiber)
 Select Jacket Materials
V:PVDF(Thermoplastics Polyvinylidene Fluoride)
E:FR·PE(Flame-retardant Polyethylene)
L:LSZH(Low Smoke Zero ("¤·") Halogen)
P:FR-PVC(Flame-retardant Polyvinyl Chioride)
 Select Cable Outer Diameter
02 : Fiber Count |
 Select Buffer Materials
N: PA-12 (Polyamid ; NylonR)
H: TPEE (Thermoplastics Polyester Elastomer £» HytrelR)
L: LSZH (Low Smoke Zero ("¤·") Halogen)
P:FR-PVC(Flame-retardant Polyvinyl Chioride)
 Select Flame Retardancy Grade
L : LSZH Type
P : OFNP Type
R : OFNR Type
E : FR-PE
(Frame-retardant Polyethylene)
 Select Jacket Color Abbreviation
EX)BL: Blue |
|
♣Printing of outer jacket ( OPTIONAL according to CUSTOMER) |
| |
| Cabled Attenuation |
| Fiber Type |
SMF (9/125)
(Single Mode Fiber)
13.10nm / 1550nm |
MMF(50/125)
(Multi-Mode Fiber)
850nm / 1300nm |
MMF(62.5/125)
(Multi-Mode Fiber)
850nm / 1300nm |
Maximum Attenuation
(dB/km) |
0.40 / 0.25 |
3.5 / 1.5 |
3.7 / 1.5 |
Typical Attenuation
(dB/km) |
0.35 / 0.20 |
2.5 / 0.6 |
3.0 / 1.0 |
|
| |
|
|
|
