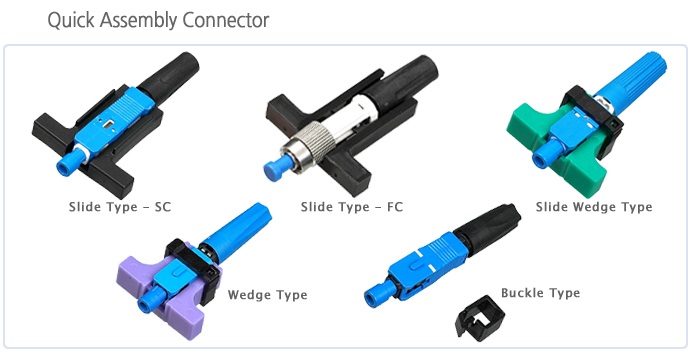

ftth field assembly connector
) |
| |
| FTTH Field Assembly Connector |
| |
 |
| |
We can provide a quick and easy termination of fibers in the field.
Both SC single mode and multi mode connector options are available for 900 micron and 3mm drop cable application
allowing the installer to terminate and make connection in 3 minutes in the field.
This connector system doesn't need any requirement such as epoxy, adhesive and costly curing ovens.
Field installable SC connector features that installer can easily recognize the installation status by termination tool. |
| Features |
- Field installable, Cost effective, User friendly
- No epoxy and polishing required
- Quick and easy fiber termination in the field
- Visual indication of proper termination
- Reliable and superior optical performance |
| |
| Specifications |
| Connector Type |
SC Type |
| Insertion Loss |
Max 0.5dB |
| Reflection |
Typical < -40 dB |
| Tensile Strength |
900um |
5N |
| 3mm |
30N |
| Connector Durability |
< 0.2 dB (After 200 mating) |
| Operating Temperature |
-40กษ ~ +85กษ |
|
| |
| Ordering Information |
| Type |
Fiber |
SC Type |
SC
X : S, W, SW, B |
SM : 9/125 um
MM : 50/125
HMM : 62.5/125 |
25 : 250
09 : 0.9
24 : 2.4
30 : 3.0
08 : Figure 8 |
|
| |
| |
|
|
|
