| LBRF |
| |
| Low Bending Radius Single Mode Optical Fiber [ LBRF ] |

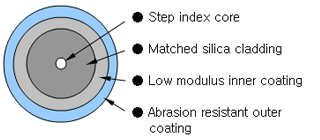

LBRF is designed to provide improved performance across the
full wavelength region form 1265 to 1625nm and it has low sensitivity to
macrobending results in lower attenuation levels in the 1625 nm region.
LBRF fully meets ITU-T G.652D & G.657 and is available for
use in loose tube cable, ribbon and other cable designs.
Especially, the Low bending performance is useful for FTTH application. |
| FEATURESS BENEFITS |
- Low 1383nm loss for full utilization from 1625 to I625nm
- Fully compliant with (ITU-T G.652.D S G.657)
- Small allowable bending diameter (20mm)
- Mechanically strippable coating for easy field application.
- Compatible with any commercial optical devices. |
| FEATURESS BENEFITS
|
- Local area network systems
- Long haul telecommunication
- Data communication
- Cable television system
- Closed circuit television system
|
|
| Optical Characteristics |
Geometric Characteristics |
| Items |
Specifications |
| Attenuation |
@1310nm |
≤ 0.35 dB/km |
| @1310nm |
≤ 0.31 dB/km |
| @1310nm |
≤ 0.22 dB/km |
| @1310nm |
≤ 0.23 dB/km |
| Dispersion |
@1310nm |
≤ 3.2 ps/nm.km |
| @1310nm |
≤ 18 ps/nm.km |
| PMD |
@1310nm |
≤ 0.20 ps/vkm |
| @1310nm |
≤ 0.10 ps/vkm |
| Zero Dispersion Wavelength |
1300~1320nm |
| Zero Dispersion Slove |
≤ 0.092 ps/nm.km |
| Cutoff Wavelength |
Fiber |
1150~1330nm |
| Cable |
≤ 1260nm |
* After hydrogen aging test based on IEC 60793-2-50 |
| Items |
Specifications |
| Mode Field Diameter |
8.6 ± 0.4§ @1310nm |
| Cladding Clameter |
125 ± 0.9§ |
| Cladding Non-Circularity |
≤ 0.9% |
| Concentricity Error |
≤ 0.7§ |
| Coating Diameter |
245 ± 10§ |
|
| |
| Mechanical Characteristics |
| Items |
Specifications |
| Proof Test Level |
≥ 100kpsi (0.7GN/) |
| Coating Strip Force |
1.3~8.9N (Nom. 3N) |
Bending
Loss |
Φ50/100turns |
≤ 0.05 dB@ 1625nm |
| Φ20/1turn |
≤ 0.05 dB@ 1625nm |
|
|
| |
| Environmental Characteristics |
| Test Method |
Test Condition |
Induced Loss @1320 |
Induced Loss @1550nm |
| Temperature Dependence |
-60¡É ~ +85¡É |
≤ 0.05 dB/km |
≤ 0.05 dB/km |
| Temperature Humidity Cycling |
-10¡É ~ +85¡É / RH 95% |
≤ 0.05 dB/km |
≤ 0.05 dB/km |
|
| |
| Typical Performance Characteristics |
 |
| Items |
Specifications |
Effective
Group Index |
@1310nm |
1.467 |
| @1550nm |
1.468 |
| Refractive Index Difference |
0.35% |
| Zero Dispersion Wavelength |
1315nm |
| Zero Dispersion Slope |
0.086 ps/n§©.km |
| Dispersion at 1550nm |
16.0 ps/nm.km |
|
|
| |
