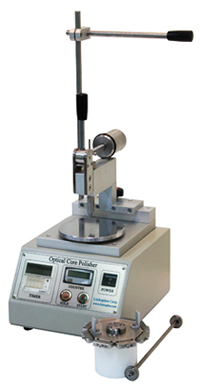

| Polisher |
| |
| Appearance |
Polishing process for quick and field-purpose
Re-polishing process in field
Lab and R&D purpose
Telecommunication Networks
Data Communication Networks
CATV Networks
Active Device Termination
Local Area Networks
4 Port, 16Port for SC/FC/ST/LC(PC, APC) |
| Specifications |
| Weight |
Approximately 7.2Kg |
| Dimensions |
160mm x 360mm x 230mm (W x H x D) |
| Power |
INPUT : 100~240V 50/ 60Hz |
| OUTPUT: DC 12V 2A |
| Polish Capacity |
16ports |
| Polish type |
PC & APC ferrule and connector type |
| Twist Test |
FC, SC, ST, LC and MU |
| Pressure Control |
Lever Weight |
| Return loss |
≥55dB, PC polishing |
|
|
| |
| ¡á SFP-550S |
| This top of the line polishing machine offers excellent production
throughput of up to 40 ferrules simultaneously. Offering our widest
versatiHty of connectors and ferrules including MT/MPO ferrules:
Fiber array and Planar Lightwave Circuit chip processing: the
SFP-550S is a high workability machine. It features a full function
LCD touch panel for simplified programming of various polishing
processes. AdditionaDy: it features a slow start function,
programmable turntable speed-controtter and voltage-free power
input for world-wide versatile installation. Best for use in high
volume mass-production environments where critical geometry
performance is required. |
| Application |
High volume. Installation |
| Pressure Source |
4 coil springs |
| Polishing Capacity(max) |
40 |
| Programmable Process Steps |
8 (maximum) |
| Number of programs |
12 |
| Speed of Turntable |
Rotation; 0.1-2rpm Revolution; 5-140rpm |
| Dimensions |
310 x230 x295mm |
| Weight (approx.) |
16.7kg |
| Input Voltage |
100-240VAC, 50-60Hz |
| Connector Type |
2.5mm for PC and APC
1.25mm for PC and APC
MT: mini-MT: Fiber array |
|
|
| |
| ¡á SFP-550E |
Offering features found in our SPF-550S: this model features 4
unique timers instead of a touch panel while still pro\iding mass-
production: adaptability and versatility. This allows for simple
programming and operation and reduces operator error. It also
features speed control of the turntable and voltage-free power
input. |
| Application |
High volume. Installation |
| Pressure Source |
4 coil springs |
| Polishing Capacity(max) |
40 |
| Speed of Turntable |
Rotation; 0-2rpm
Revolution; 5-140rpm |
| Dimensions |
310 x230 x295mm |
| Weight (approx.) |
16kg |
| Voltage |
100-240 VAC: 50-60Hz |
| Connector Type |
2.5mmPC: APC
1.25mmPC: APC
MT: mini-MT, Fiber array |
|
|
| |
| ¡á SFP-120A(550) |
| This is our most reasonably price model with basic features from
our top of the line models. Originally designed for the proprietary
IPC (Individual Pressure Control) system,this polisher offers even
pressure to each ferrule regardless of it's protrusion length while
achieving stable: high-quality mass-polishing output. Highly
recommended for multi-installation: large scale cable production
factories. * Note that all polishing holders: films and pads of the
SFP-550 (120A) series can be commonly used for these 3
polishers. |
| Application |
High volume. Installation |
| Pressure Source |
4 coil springs |
| Polishing Capacity(max) |
40 |
| Dimensions |
230x255 x230mm |
| Weight (approx.) |
16(23.5)kg |
| Voltage |
100-120 VAC, 50/60Hz
Or 220-240 VAC 50/60Hz |
| Connector Type |
2.5mmPC: APC
1.25mmPC: APC
MT: mini-MT, Fiber array |
|
|
| |
| ¡á SFP-70D |
This model is intended for light production capacity. The SFP-
70D provides 6 axis simultaneous polishing and can be operated
on AC or DC power for field use. Optional adhesive heaters are
also available which can be attached to the polishing machines. |
| Application |
Laboratory |
| Pressure Source |
4 coil springs |
| Polishing Capacity(max) |
6 |
| Dimensions |
130 x 145 x 130mm |
| Weight (approx.) |
3.2kg |
| Input Voltage |
100-240VAC: 50/60Hz
3way power supply : 12V battery: Cigarette
lighter socket and A/C power |
| Connector Type |
2.5mm PC
1.25mm PC |
|
|
| |
| ¡á SFP-70D2 |
This model provides 2 axis simultaneous polishing at competitively
low cost and is most suitable for light production environments like
field termination and laboratory use. |
| Application |
Laboratory |
| Pressure Source |
Holder weight |
| Polishing Capacity(max) |
2 |
| Dimensions |
120 x 115 x90mm |
| Weight (approx.) |
3.2kg |
| Input Voltage |
100-240VAC: 50/60Hz
3way power supply : 12V battery: Cigarette lighter socket and A/C power |
| Connector Type |
2.5mm PC
1.25mm PC |
|
|
| |
| |
| |
