Specifications |
| |

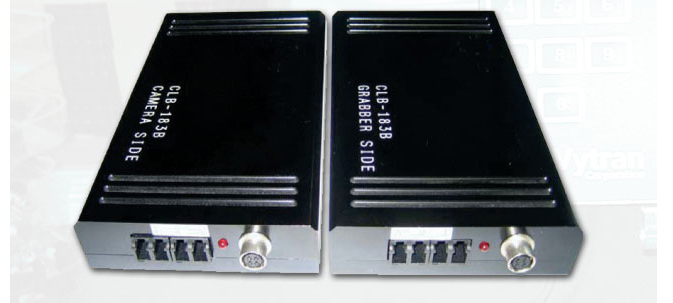

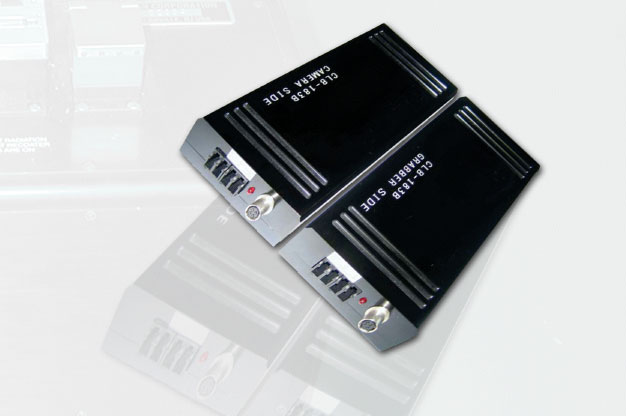

The optic converter perfectly meets the standard of Camera
LinkTM and supports 24-bit data, serial communication,
and four camera control lines. Its capacity of transmitting is to
the maximum, 66 MHz and its maximum transmission distance
is 500m. With the optic cable, this optic converter protects
data from various noises during the transmission and doesn't
generate any noise.
Currently, the optic converter is used in LCD/PDP inspection
devices and monitoring device. It is applicable for Line Scan
or Area Scan in Camera LinkTM type.
|
| |
Product Features |
| |
Its capacity of transmitting is to the maximum, 66 MHz and
its maximum transmission distance is 500m.
With the optic cable, this optic converter protects data
from various noises during the transmission and doesn’t
generate any noise. |
| |
|
| |
Specifications |
| |
| Model |
CLB-183B |
CLM-184A |
| Camera Link Interface |
| Pixel Data |
Base 24-bit
(Tab A,B,C) |
Medium 48-bit
(Tap A,B,C,D,E,F) |
| Pixel Clock |
66MHz |
| Sync. Signals |
LVAL, FVAL, DVAL |
| Camera Control |
CC1 ~ CC4 |
| Serial Communication |
SerTFG, SerTC |
| Fiber Optic Interface |
| Fiber Type |
62.5um or 50um, Multi-mode |
| Max. Length |
500meters
(Contact us for longer lengths) |
| Connector Type |
LC-type |
LC-type |
| Fibers in Link |
3 lines |
4 lines |
| Other |
| Input Voltage |
4.5V ~ 7V |
| Power Consumption |
4W |
5W |
| Power Connector |
4-pin, locking type |
Dimensions (mm)
<L x W x H> |
126 x 83 x 23 |
164 x 122 x 23 |
|
| |
 |
| |
|
| |
|
|
|
|
